Scanner information

Category: A4
Name: KV-N1058X
Catalogue: HERE

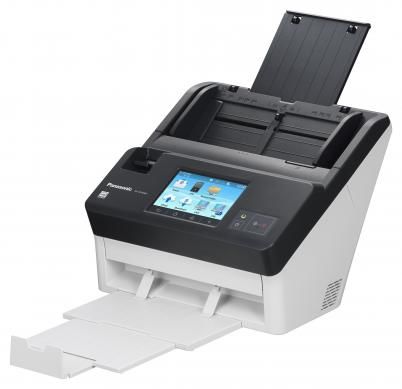

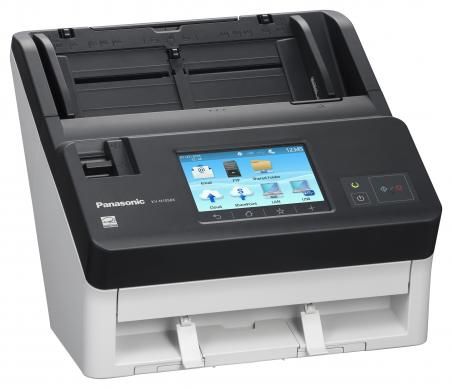

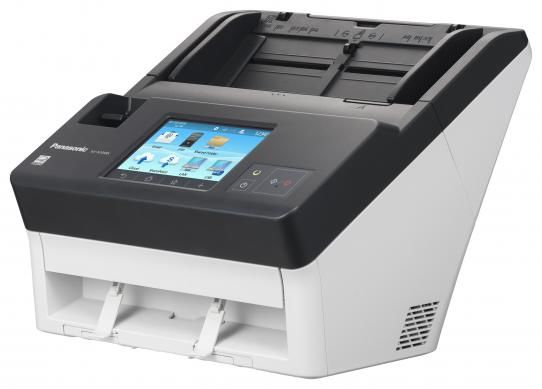

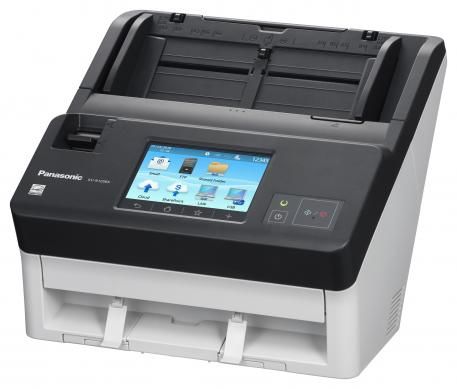

LARGE COLOR TOUCH SCREEN

The addition of the 5-inch color touch screen mounted on the scanner lets users adjust the settings and perform scanning operations easier and faster. Using a preset scan setting, scanning operation can be done in 2 clicks.

SPECIFICATIONS

Scanning Method	1 line color CIS (300 dpi/600 dpi), Black or White Background
Dimensions (W x D x H)	300 x 272 x 238 mm (11.8 x 10.7 x 9.4 in.) When the exit tray is closed
Scanning Face	Simplex / Duplex scanning
Scanning Resolution*1	ICP/TWAIN	50 – 600 dpi (1 dpi step) 1,200 dpi (Interpolated) Optical: 300 dpi / 600 dpi (Automatic switch)
	ISIS	100 – 600 dpi (1 dpi step) 1,200 dpi (Interpolated) Optical: 300 dpi / 600 dpi (Automatic switch)
Binary Speed*2 Portrait, 200 / 300 dpi (A4)	Simplex	70 ppm
	Duplex	140 ipm
Color Speed*2 Portrait, 200 / 300 dpi(A4)	Simplex	70 ppm
	Duplex	140 ipm
Feed Tray capacity	Up to 100 sheets 80 g/m2(21 lbs., A4 or Letter) 3 hard cards (ISO 7810 ID-1) Up to 75 sheets 80 g/m2(21 lbs.)*5
Tonal Gradation (Bitonal Mode)	Dither, Error diffusion
Interface	USB 3.2 Gen 1 (backward compatible) LAN (10Base-T / 100Base-TX / 1000Base-T)*8 Wireless LAN (IEEE802.11n/g/b)

*1 When scanning a document larger than A5 size at high resolutions over 600 dpi, the scanning may fail due to insufficient memory. 50 – 99 dpi and 1200 dpi can be used only when scanning with Image Capture Plus, TWAIN, or ISIS (ICP: Ver.3.12.1.1 or later, TWAIN: Ver.20.0.0.3 or later). *2 The scanning speed differs depending on the host computer, the operating system, the application, the measuring method, the quantity of data in the image, and the paper type. The scanning speed depends on a measuring method of Panasonic. In case of using this unit with a LAN connection, the scanning speed may be slower due to network traffic. *3 Scan server must be set up. Also, it is necessary to install Image Capture Plus into the PC used as a scan server. *4 It is necessary to install Image Capture Plus into the target PC. *5 Paper less than 100 mm (3.9 in.) long or legal size paper: 75 sheets *6 Using "Long Paper", you can scan long documents by splitting them into smaller parts. *7 Use the carrier sheet (KV-SS077) to scan passport. Depending on the condition (operating environment, dirt, scratches, etc.) of the carrier sheet or passport, the image processing function may not work properly. Scan beforehand to confirm the scanned image. *8 To assure continued emission limit compliance, use only shielded LAN cable. The cable should be a CAT 5 (Category 5) or higher for 10Base-T / 100Base-TX, or CAT 5e (Enhanced Category 5) or higher for 1000Base-T. *9 Values differ depending on the country. *10 The power requirement differs depending on the country/area. *11 If connected to a network device (hub, router, etc.) that supports IEEE802.3az. *12 This tool is used when the scanner is connected via USB. *13 USB Scanning only. *14 Required to installing OCREngine for Image Capture Plus on 2 or more PCs. (For 1 license) *15 Required to installing OCREngine for Image Capture Plus on 2 or more PCs. (For 10 licenses) *16 To install the scan server, you need this option.
