Scanner information
- Category: A4
- Name: KV-S3066
- Catalogue: HERE

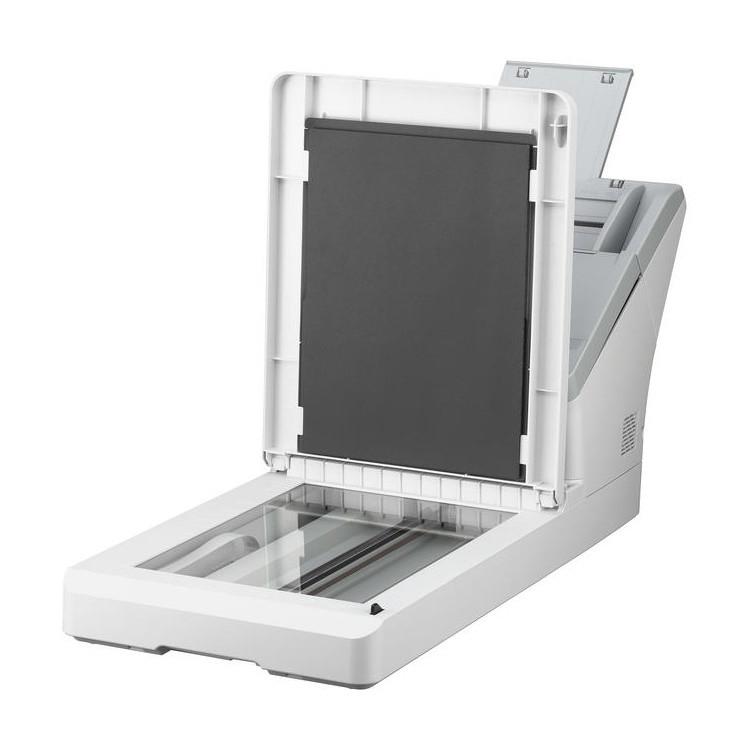

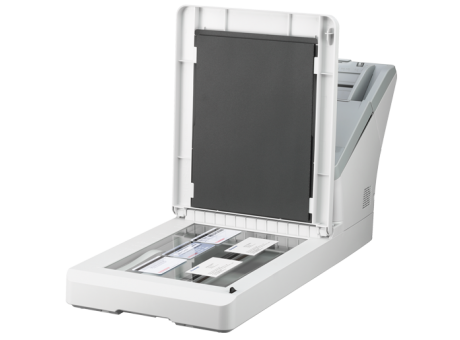

FLATBED SCANNING
Booklets, damaged papers and other documents that cannot be fed through the Auto Document Feeder (ADF) can be scanned with flatbed scanning. The scanner is also equipped with a Start button*, so work efficiency can be increased by quickly scanning while turning the book's pages, with no PC operation necessary.
* Free First Year Support and Maintenance
SPECIFICATIONS

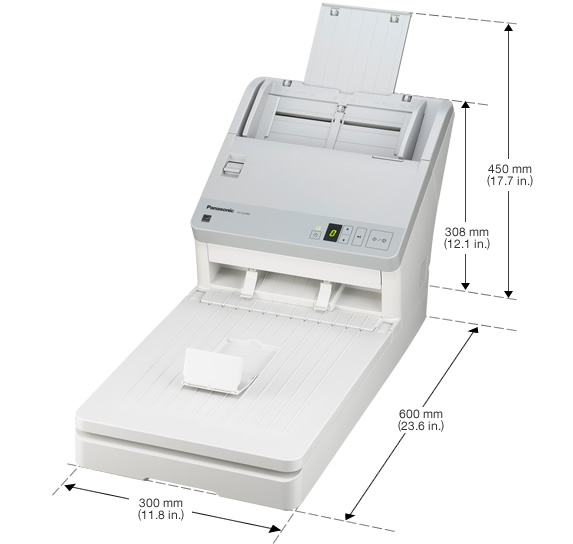

| Dimensions (W x D x H) | 300 x 650 x 308 mm (11.8 x 25.6 x 12.1 in.) | |
| Scanning Type | A4 Flatbed + ADF | |
| Scanning Face | Duplex scanning | |
| Scanning Resolution*1 | ICP/TWAIN | 50 – 600 dpi (1 dpi step) 1,200 dpi (Interpolated) Optical: 300 dpi / 600 dpi (Automatic switch) |
| ISIS | 100 – 600 dpi (1 dpi step) 1,200 dpi (Interpolated) Optical: 300 dpi / 600 dpi (Automatic switch) |
|
| Binary Speed*2 Portrait, 200 / 300 dpi (A4) | Simplex | 65 ppm |
| Duplex | 130 ipm | |
| Color Speed*2 Portrait, 200 / 300 dpi(A4) | Simplex | 65 ppm |
| Duplex | 130 ipm | |
| Feed Tray capacity | 100 sheets: 80 g/m2 (21 lbs.) | |
| Flatbed Scanning Speed*2 A4/Portrait, Binary/Color, 200/300 dpi | 1.5 sec./page | |
| Paper Weight | 20 – 413 g/m2 (5 – 110 lbs.) | |
| Interface | USB 2.0 | |
