Scanner information

  • Category: A3
  • Name: KV-S5046H
  • Catalogue: HERE

SELF CLEANING FUNCTIONS

The ion-filled breeze created by the ionizer neutralizes the electrical charge on the documents to be scanned, and reduces the amount of paper dust that clings to their surface. This ion-filled breeze also flows through the paper path and removes paper dust from the scanning glass to reduce the need for the user to clean the glass.

* Free First Year Support and Maintenance

SPECIFICATIONS

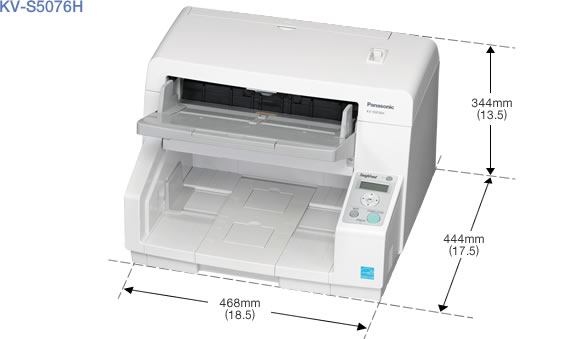

Dimensions (W x D x H) 468 x 444 x 344 mm (18.5 x 17.5 x 13.5 in.)
Scanning Method Color CIS
Scanning Face Duplex scanning
Scanning Resolution*1 ICP/TWAIN 50 – 600 dpi (1 dpi step)
Optical: 300 dpi / 600 dpi (Automatic switch)
ISIS 100 – 600 dpi (1 dpi step)
Optical: 300 dpi / 600 dpi (Automatic switch)
Binary Speed*2 Portrait, 200 / 300 dpi (A4) Simplex 80 / 80 ppm
Duplex 160 / 160 ipm
Color Speed*2 Portrait, 200 / 300 dpi(A4) Simplex 80 / 80 ppm
Duplex 160 / 160 ipm
Feed Tray capacity Up to 300 sheets (80 g/m2, 21 lbs.)
Interface USB 3.1 Gen 1 (backward compatible)
*1 When scanning a document larger than A5 size at high resolutions over 600 dpi, the scanning may fail due to insufficient memory. 50 – 99 dpi can be used only when scanning with Image Capture Plus, TWAIN, or ISIS (ICP: Ver.3.12.1.1 or later, TWAIN: Ver.20.0.0.3 or later). *2 The scanning speed differs depending on the host computer, the operating system, the application, the measuring method, the quantity of data in the image, and the paper type. The scanning speed is as determined by Panasonic methods of speed measurement. *3 "Weight in pounds" of paper represents the weight of 500 sheets (432 x 559 mm / 17 x 22 in.). Scan quality cannot be guaranteed for documents with a non-standard size. *4 The power requirement differs depending on the country/area. *5 Availability of the model may differ depending on the country. • ISIS is a registered trademark or trademark of Open Text Corporation. • ENERGY STAR® and the ENERGY STAR certification marks are registered US marks. • All product names are trademarks or registered trademarks of their respective holders. • Specifications are subject to change without notice. • Dimensions and weights are approximate.
