Scanner information

  • Category: A4

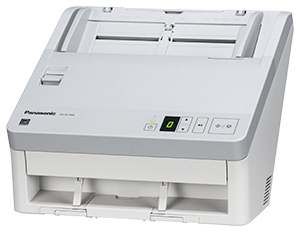

  • Name: KV-SL1056
  • Catalogue: HERE

DUPLEX SCANNING

Double-sided scanning of documents from business-card size all the way to A4 can be done with a single scan. Plus, double-sided scanning is done at the same speed as single-sided scanning. This eliminates the need to repeatedly turn the document over to the front and back to rescan, and prevents pages from being missed when scanning.

* Free First Year Support and Maintenance

SPECIFICATIONS

Scanning Method Color CIS (600 dpi) / Black or White Background / Sensor : CMOS

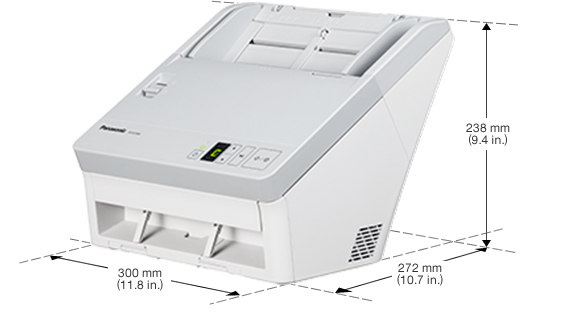

Dimensions (W x D x H) 300 x 272 x 238 mm (11.8 x 10.7 x 9.4 in.) When the exit tray is closed
Scanning Face Duplex scanning
Scanning Resolution*1 ICP/TWAIN 50 – 600 dpi (1 dpi step)
1,200 dpi (Interpolated)
Optical: 300 dpi / 600 dpi (Automatic switch)
ISIS 100 – 600 dpi (1 dpi step)
1,200 dpi (Interpolated)
Optical: 300 dpi / 600 dpi (Automatic switch)
Binary Speed*2 Portrait, 200 / 300 dpi (A4) Simplex 45 ppm
Duplex 90 ipm
Color Speed*2 Portrait, 200 / 300 dpi(A4) Simplex 45 ppm
Duplex 90 ipm
Feed Tray capacity Up to 100 sheets 80 g/m2(21 lbs., A4 or Letter)
3 hard cards (ISO 7810 ID-1)
Up to 75 sheets 80 g/㎡(21 lbs., less than 100 mm length paper and Legal size)
Tonal Gradation (Bitonal Mode) Dither, Error diffusion, Grayscale (8 bit), Binary
Interface USB 3.1 Gen 1 (backward compatible)
*1 When scanning a document larger than A5 size at high resolutions over 600 dpi, the scanning may fail due to insufficient memory. 50 – 99 dpi and 1200 dpi can be used only when scanning with Image Capture Plus, TWAIN, or ISIS (ICP: Ver.3.12.1.1 or later, TWAIN: Ver.20.0.0.3 or later). *2 The scanning speed differs depending on the host computer, the operating system, the application, the measuring method, the quantity of data in the image, and the paper type. The scanning speed is as determined by Panasonic methods of speed measurement. *3 Though other paper size can be specified, it cannot be guaranteed. *4 The maximum size that can be scanned varies depending on the resolution. *5 Use the carrier sheet (KV-SS077) to scan passport. Depending on the condition (operating environment, dirt, scratches, etc.) of the carrier sheet or passport, the image processing function may not work properly. Scan beforehand to confirm the scanned image. *6 "Weight in ponds" of paper represents the weight of 500 sheets (432 x 559 mm /17 x 22 in.). *7 The power requirement differs depending on the country/area. • ISIS is a registered trademark or trademark of Open Text Corporation. • ENERGY STAR and the ENERGY STAR certification marks are registered US marks. • All product names are trademarks or registered trademarks of their respective holders. • Specifications are subject to change without notice. • Dimensions and weights are approximate.
